General |
||||||
| Frequency Range |
|
VHF: 136MHz-174MHz UHF: 400MHz-480MHz |
|
Number of Channels |
|
16 |
| Working Voltage |
|

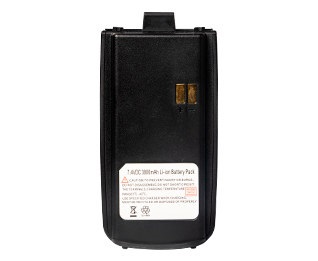

(DC) 7.4V |
|

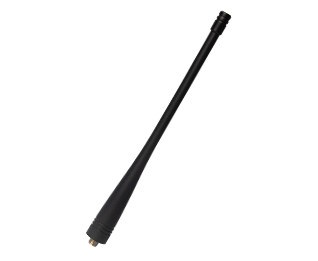

Antenna Impedance |
|
50Ω |
| Frequency Stability |
|
±2.5 PPM |
|
Operating Temperature Range |
|
-20℃~+60℃ |
| Operating Type |
|
Same frequency simplex or different frequency simplex operation |
|
Size(HxLxW) |
|
133*58*38mm |
| Weight |
|
250g |
|
|||
|
Transmit |
||||||
| Power Output |
|
VHF: 10W ( MAX ) UHF: 10W ( MAX ) |
|
Modulation |
|
F3E ( FM) |
| Maximum Deviation |
|
≤5KHz ≤2.5KHz |
|
Radiation Power |
|
≤7.5uW |
| Neighbour Channel power |
|
≤-65dB ≤-60dB |
|
|||
|
Accepted part |
||||||
| Sensitivity |
|
0.18uV |
|
Audio Power |
|
≥500mW |
| Audio Distortion |
|
≤10% |
|
Noise Response |
|
≥65dB |
