Specification |
||||||
| System |
|
Android 7.1 |
|

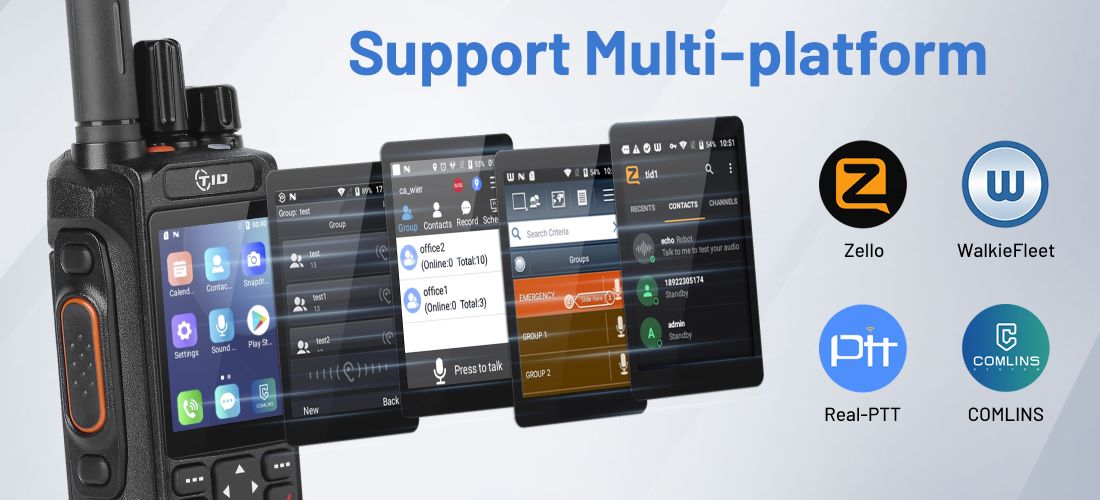

Platform |
|
Comlins/Zello/Walkiefleet/Real-PTT/PoC Star etc. |
| Version A |
|
LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 TD-SCDMA: B34/B39 EVDO/CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz |
|
Version B |
|
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: 850/900/1800/1900MHz |
| Version C |
|
LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26 WCDMA: B1/B2/B4/B5/B8 GSM: 850/1900MHz |
|
Version D |
|
LTE FDD: B1/B3/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: GSM:850/900/1800/1900MHz |
| Version E |
|
LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28A LTE TDD: B38/B41 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz |
|
WLAN |
|
A Network Version: 2.4G/5G, 802.11 a/b/g/n B/C/D/E Network Version: 2.4G/5G, 802.11 a/b/g/n |

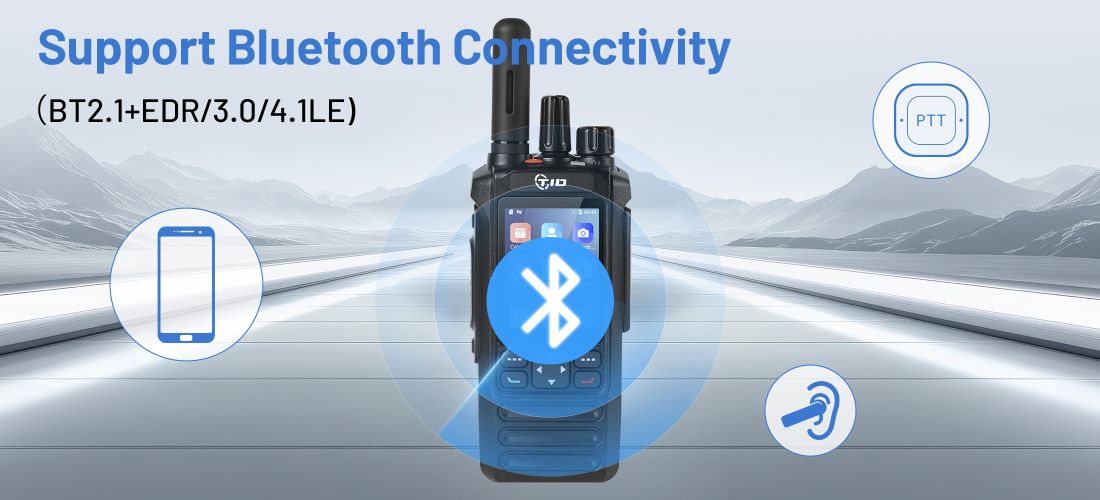

| Bluetooth |
|
BT2.1+EDR/3.0/4.1 LE |
|

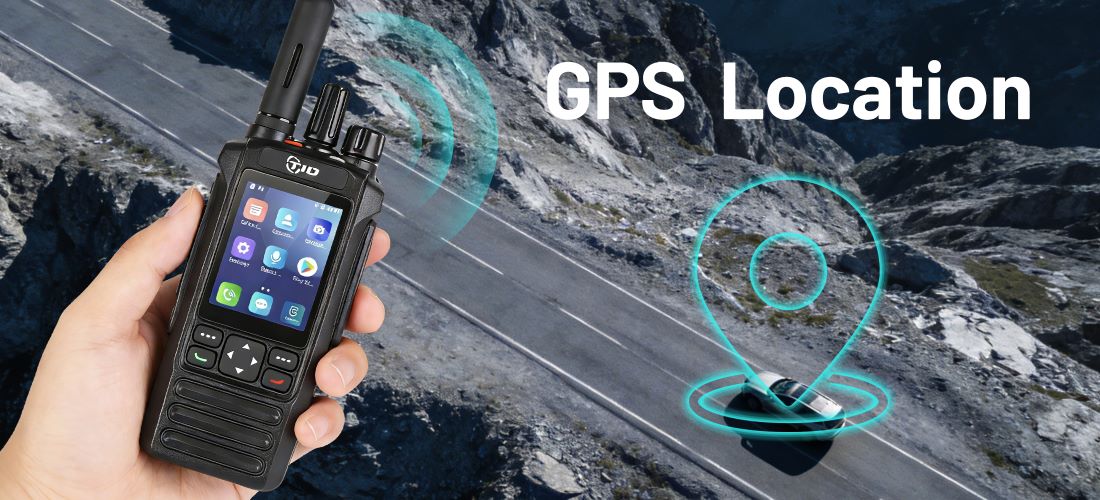

Positioning System |
|
GPS/GLONASS/BeiDou |
| LTE |
|
LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL) LTE TDD: Max 130Mbps (DL)/Max 35Mbps (UL) |
|
UMTS |
|
DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL/UL) |
| Ports |
|
M Type Multi-Pin Interface Headphone Jack |
|
Memory |
|
RAM: 1GB ROM: 8GB |
| Battery |
|
4000mAh (Li-ion) |
|

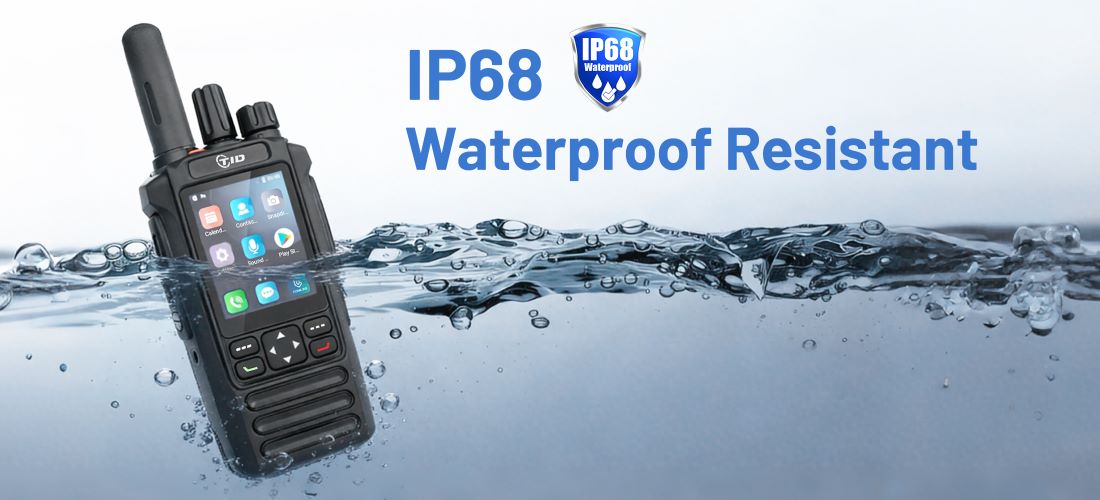

Dust and Water Proof |
|
IP68 |
| Audio Power Output |
|
2W |
|
Dimensions |
|
135*60*40mm(Without Antenna) |
| Weight |
|
262g (With Battery and Antenna) |
|
Operating Voltage |
|
3.5V~4.2V，3.8V Typical Value |
